ANT58-1514PC
產品介紹
DATA SHEET
| Model No. : | ANT58-1514PC |
| Description : | 5.2~5.8 GHz DUAL POLARIZATION SECTOR ANTENNA |
| Date : | 2013/05/03 |
| Rev : | 1 |
OVERVIEW & SPECIFICATIONS
Electrical Specifications:
| Frequency Range : | 5200~5800MHz |
|---|---|
| VSWR : | ≤ 2.0 |
| Gain : | 15dBi |
| Impedance : | 50Ω |
| Polarization : | 45° -45° |
| Beamwidth | |
| 45° Plane | 5200MHz 91° 5800MHz 62° |
| - 45° Plane | 5200MHz 93° 5800MHz 64° |
| Max. Power | 10 Watt |
| Isolation | ≤ 20 |
Mechanical Specifications:
| Connector : | N Female |
|---|---|
| Cable | |
| Operation Temp. : | -30℃ ~ +60℃ |
| Material-Radome | ABS |

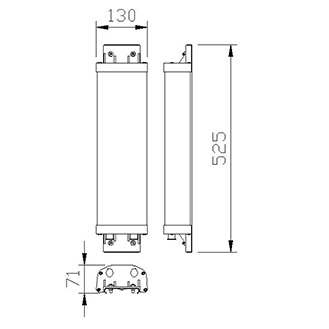

| Dimension (L*W*H) | 525*130*71mm |
| Weight : | 1082g ± 10g (w/o mount) |
| RoHS compliant | Yes |
3D Illustration
VSWR
Vertical
Horizontal
Radiation Pattern
45°. Plane
-45°. Plane
ISOLATION
