ANT09-1200PC
產品介紹
SPECIFICATION
| Model No. : | ANT09-1200PC |
| Description : | 860~960MHz PANEL ANTENNA |
| Date : | 2008/10/08 |
| Rev : | 1 |
Electrical Specifications:
| Frequency Range : | 860~960MHz |
|---|---|
| VSWR : | ≤ 2.0 |
| Impedance : | 50Ω ± 5Ω |
| Gain : | 12 dBi |
| Polarization : | Vertical |
| Power Handling : | 10 Watt |
| Beam Width : | H:42.1/ E:38.1 |
Mechanical Specifications:
| Connector : | N Female |
|---|---|
| Operation Temp : | -30℃ ~ +60℃ |
| Material : | Radome: ABS Mount: Zinc Alloy |
| Dimension (L*W*H) : | 410*410*180 mm |
| Weight : | 1350g ± 20g (w/ mount) |
| Color : | COOL GRAY 5C |
3D Illustration
RETURN LOSS
SWR

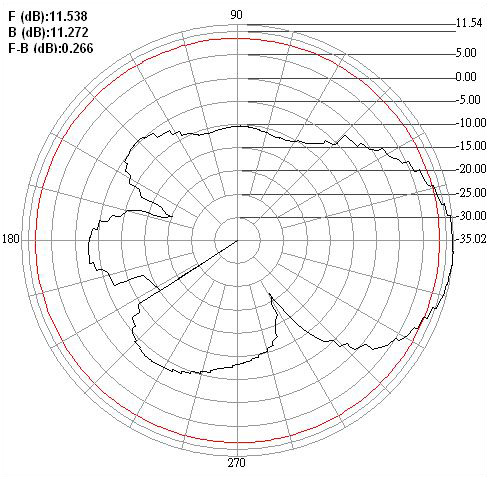

H-PLANE
E-PLANE
