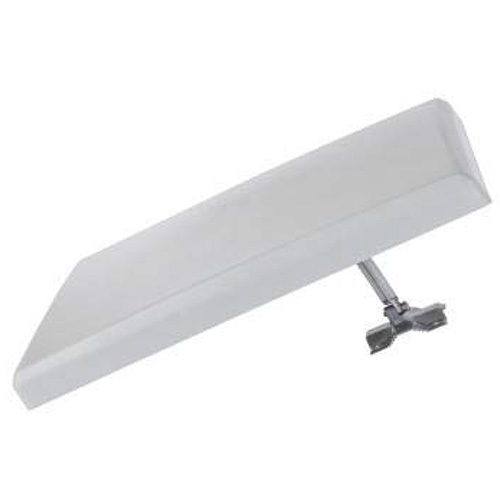

ANT58-2410PC
產品介紹
DATA SHEET
| Model No. : | ANT58-2410PC |
| Description : | 5.1~5.9 GHz DUAL POLARIZATION 24 dBi PANEL ANTENNA |
| Date : | 2011/08/11 |
| Rev : | 1 |
Electrical Specifications:
| Frequency Range : | 5100 ~ 5900 MHz |
|---|---|
| VSWR : | ≤ 2.0 |
| Gain : | 24dBi |
| Impedance : | 50Ω |
| Polarization : | Vertical & Horizontal |
| Beamwidth | |
| Vertical | 10∘ |
| Horizonta | 10∘ |
| Max. Power | 50 W |
| Isolation | <-20dB |
Mechanical Specifications:
| Connector : | N Female |
|---|---|
| Cable | NA |
| Operation Temp. : | -30℃ ~ +60℃ |
| Material-Radome | Zinc Alloy - ABS |
| Dimension (L*W*H) | 410*410*44 mm |
| Weight : | 2075g ± 30g |
| RoHS compliant | Yes |
Antenna Pattern
