ANT58-2210MW MIMO antenna

ANT58-2210MW MIMO antenna
    Product Name : ANT58-2210MW MIMO antenna
    Product No : ANT58-2210MW
    Product Introduction

    DATA SHEET

    Model No. : ANT58-2210MW
    Description : 5.15~5.85 GHz DUAL POLARIZATION
    22 dBi PANEL ANTENNA
    Date : 2011/08/11
    Rev : 1

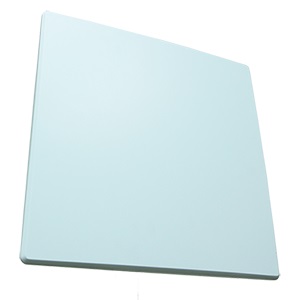

    proimages/ANT58-2210MW.jpg

    Electrical Specifications:

    Frequency Range : 5150 ~ 5850 MHz
    VSWR : ≤ 2.0
    Gain : 22dBi
    Impedance : 50Ω
    Polarization : Vertical & Horizontal
    Beamwidth
            Vertical 9∘
            Horizonta 9∘
    Max. Power 50 W
    Isolation > 25dB

    Mechanical Specifications:

    Connector : SMA Female
    Cable NA
    Operation Temp. : -40℃ ~ +65℃
    Material-Radome Zinc Alloy - ABS
    Dimension (L*W*H) 380*380*18 mm
    Weight : 1500g ± 30g
    RoHS compliant Yes
