KWS-10E
產品介紹
Network Lightning / Surge Protector PoE Compatible
P/N : KWS-10E
Features :
- Shielded RJ45 jack and metal housing for EMC noise suppression.
- CAT5 / CAT5e compatible.
- Cast aluminum construction.
- Integral mounting feet.
- Bi-Directional Protection
Specifications :
| Operating Voltage | Data 5V PoE 48V |
|---|---|
| Break Down Voltage | Data 90V Power 90V |
| Max. Surge Discharge Current | Data 10KA Power 10KA (8/20uS) |
| Peak Pulse Current | 100A (10/1000uS) |
| Pin Protected (1) | All 8 pin protected |
| Protection Mode | Differential & Common mode |
| Insulation Impedance | > 1000Mohm |
| Max. Shut Capacitance | Power < 2.5pF Data < 2.5pF |
| Data Rate | 1000Mbps |
| Impulse Protected Voltage | < 500V |
| Response Time | < 5nS |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +125℃ |
| Operating Humidify | 0 ~ 95% non condensing |
| Ground Lug Wire | 16AWG |
| Dimensions | 120 x 25.4 x 25.4 mm (include bracket) 111 x 25.4 x 25.4 mm (main body) |
| Weight | 105g |
Note 1
- Pin to Pin & Pin to Ground
- 4/5 pin to 7/8 pin & 4/5 pin to ground & 7/8 pin to ground.
- 1/2 pin to ground & 3/6 pin to ground.
- 1 pin to 2 pin over current protection, 3 pin to 6 pin over current protection.
- 4 pin to 5 pin over current protection, 7 pin to 8 pin over current protection.
Over current protection turn-off point 180mA ~ 360mA.
Mechanical Specifications
Installation / Application :

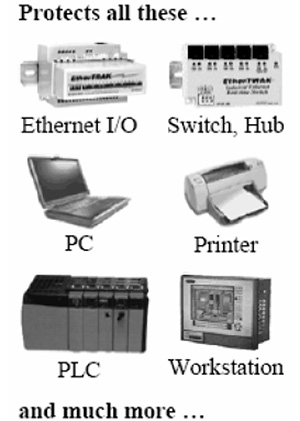

** The Protector is Bi-Directional so it’s no issue in connection between Host and slave devices
