Product Name : ANT50-D1200PC
Product No : ANT50-D1200PC
Product Introduction

DATA SHEET

Model No. : ANT50-D1200PC
Description : 2.4~2.5/5.15~5.875 GHz
PANEL ANTENNA
Date : 2010/08/05
Rev : 2
  1. OVERVIEW & SPECIFICATIONS

    Electrical Specifications:

    Frequency Range : 2.4~2.5/5.15~5.875 GHz
    VSWR : ≤ 2.0
    Impedance : 50Ω ± 5Ω
    Gain : 7.5/12dBi
    Polarization : Vertical
    Power Handling : 10 Watt

    Mechanical Specifications:

    Connector : N FEMALE
    Operation Temp : -30℃ ~ +60℃
    Material : Radome: ABS
    Base: ABS
    Dimension (L*W*H) : 150*110*60.3 mm
    Weight : 150g ± 30g (w/ mount)
    Color : WHITE

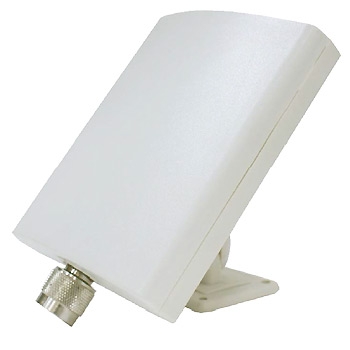

    3D Illustration


    (The Connector will be N FEMALE)
  2. TESTING CONDITION

    • 2.1 TEST SETUP
      VSWR measurement (S11): Use ROHDE & SCHWARZ ZV8 Network Analyzer with Harbour RG-142 coaxial cable: 1000mm length in free space.
    • 2.1.1 VSWR
      The table as below summarizes concern about Return loss measurement according to The frequency band is based on FWS design. The detail be shown as appendix that is from ROHDE & SCHWARZ ZV8 Network Analyzer
      VSWR Performance
      Freq(MHz) 2400 2483.5
      Free space 1.35 1.87
      VSWR Performance
      Freq(MHz) 5150 5200 5300 5400 5500
      Free space 1.38 1.28 1.48 1.26 1.42
      VSWR Performance
      Freq(MHz) 5600 5700 5800 5825
      Free space 1.54 1.55 1.28 1.46
  3. GAIN MEASUREMENT

    • 3.1 TEST SETUP
      The gain of the antenna was measured by FWS Chamber. The chamber provides less than –30 dB reflectivity from 800 MHz through 6 GHz and a 60cm diameter spherical quite zone. The measurement results are calibrated using both SCHWARZBECK horn standards. A decoupling sleeve is used to reduce feed line radiation
    • 3.2 TEST RESULT
      The peak gain is picked up as table list from Network analyzer in Chamber room, the completely gain plots also be shown as appendix.
      Peak Gain (dBi) / Beam width( ° )
      Freq(MHz) 2400 2450 2500
      H PLANE 8.51/74.6 7.65/76.5 7.23/77.4
      E PLANE 7.49/49.8 2.45/45.6 6.67/50.3
      Peak Gain (dBi) / Beam width( ° )
      Freq(MHz) 5150 5200 5300 5400 5500
      H PLANE 12.71/47.4 12.04/46.1 12.02/46.1 12.21/50.4 12.02/51.2
      E PLANE 13.31/21.5 12.76/21.5 12.51/20.8 12.7/20 12.47/20.4
      Peak Gain (dBi) / Beam width( ° )
      Freq(MHz) 5600 5700 5800 5825
      H PLANE 10.99/46.9 10.03/46 11.25/45.1 11.37/45.1
      E PLANE 11.62/18.3 10.8/19.2 12.29/21.2 12.37/21.3
  4. APPENDIX

    • 4.1 RETURN LOSS & VSWR

      RETURN LOSS

      SWR

    • 4.2 RADIATION PATTERN

      H-PLANE

      E-PLANE
