    Product Name : ANT50-D1504
    Product No : ANT50-D1504
    Product Introduction

    Dual Band Sector Antenna
    for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz
    ANT50-D1504

    Electrical Specification

    Frequency range 2400 MHz - 2500 MHz 4900 MHz - 5875 MHz
    Gain 12 dBi 15 dBi
    VSWR 2.0 : 1 Max. 2.0 : 1 Max.
    Polarization Linear, vertical Linear, vertical

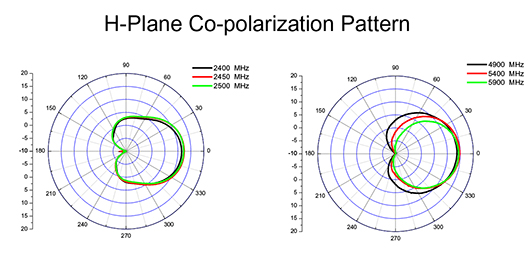

    HPBW / horizpntal 70o 65o
    HPBW / vertical 18o 8o
    Downtilt 0o
    Power handling 10 W(cw)
    Impedance 50 Ohms
    Connector N Jack

    Environmental & Mechanical Characteristics

    Survival wind speed 216 km/hr
    Temperature - 40oC to +80oC
    Humidity 95% @ 55oC
    Radome color Gray
    Radome material ABS, UV resistant
    Weight 462 g
    Dimensions 538 x 88 x 70 mm
