ANT50-D1510PC MIMO antenna
Additional files
ANT50-D1510PC_Spec_FWS_20140301.pdfProduct Introduction
DATA SHEET
| Model No. : | ANT50-D1510PC |
| Description : | 2.3-2.7GHz / 5.1-5.9 GHz Dual Polarization Panel Antenna |
| Date : | 2014/03/01 |
| Rev : | 1 |
OVERVIEW & SPECIFICATIONS
Electrical Specifications:
| Frequency Range : | 2.3-2.7G/5.1-5.9 GHz |
|---|---|
| VSWR : | ≤ 2.0 |
| Gain : | 11 / 15dBi |
| Impedance : | 50Ω±5Ω |
| Polarization : | DUAL-Polarization |
| Beamwidth | |
| 2.3-2.7 Port 1(V) | 38° |
| 2.3-2.7 Port 2(H) | 30° |
| 5.1-5.8 Port 1(V) | 34° |
| 5.1-5.8 Port 2(H) | 31° |
| Max. Power | 10 Watt |
Mechanical Specifications:
| Connector : | N Female |
|---|---|
| Cable | NA |
| Operation Temp. : | -30℃ ~ +60℃ |
| Material-Radome | Radome: ABS Mount: Zinc Alloy |
| Dimension (L*W*H) | 330*142*35±1mm |
| Weight : | 15g ± 2g |
| RoHS compliant | Yes |
VSWR
2.3-2.7G Vertical
S11
2.3-2.7G Vertical
VSWR
2.3-2.7G Horizontal
S11
2.3-2.7G Horizontal

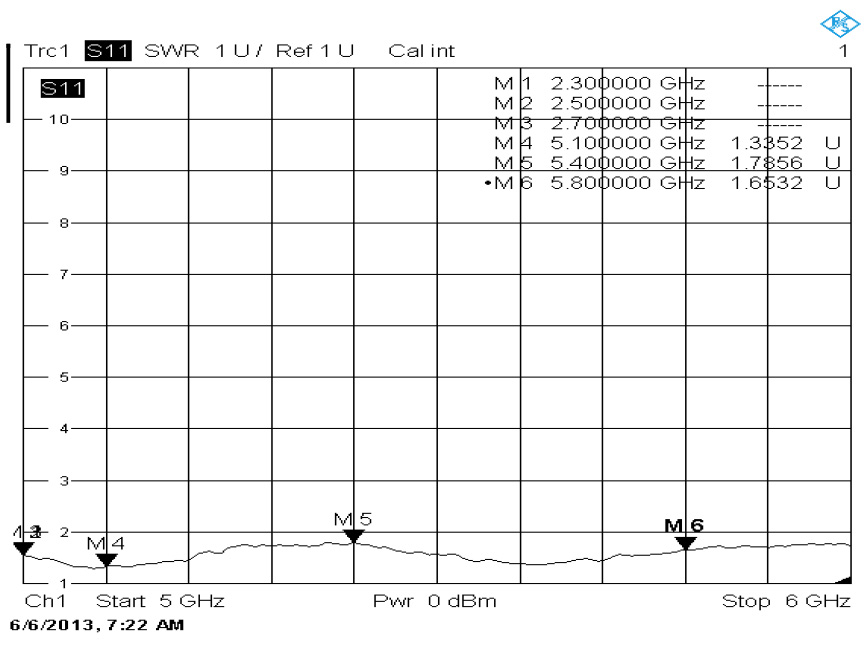

VSWR
5.1-5.8G Vertical
S11
5.1-5.8G Vertical
VSWR
5.1-5.8G Horizontal
S11
5.1-5.8G Horizontal
Radiation Pattern
2.3-2.7G H Plane
2.3-2.7G E Plane
Radiation Pattern
5.1-5.9G H Plane
5.1-5.9G E Plane
