Model No. : ANT07-0302AP
Description : 760~800MHz OMNI ANTENNA
Date : 2009/08/31
Rev : 1
  1. OVERVIEW & SPECIFICATIONS

    Electrical Specifications:

    Frequency Range : 760~800MHz
    VSWR : ≤ 2.0
    Impedance : 50Ω ± 5Ω
    Gain : 3 dBi
    Polarization : Vertical
    Power Handling : 10Watt

    Mechanical Specifications:

    Connector : N MALE
    Operation Temp. : -30℃ ~ +60℃
    Material : Radome: Fiberglass
    Base: Copper
    Dimension (L*W*H) : Ø20*590 mm
    Weight : 155g ± 10g
    Color : White

    3D Illustration

  2. TESTING CONDITION

    • 2.1 TEST SETUP
      VSWR measurement (S11): Use ROHDE & SCHWARZ ZV8 Network Analyzer with Harbour RG-142 coaxial cable: 1000mm length in free space.
    • 2.1.1 VSWR
      The table as below summarizes concern about Return loss measurement according to The frequency band is based on FWS design. The detail be shown as appendix that is from ROHDE & SCHWARZ ZV8 Network Analyzer
        VSWR Performance
      Freq(MHz) 760 780 800
      Free space 1.7770 1.1715 1.4819
  3. GAIN MEASUREMENT

    • 3.1 TEST SETUP
      The gain of the antenna was measured by FWS Chamber. The chamber provides less than –30 dB reflectivity from 800 MHz through 6 GHz and a 60cm diameter spherical quite zone. The measurement results are calibrated using both SCHWARZBECK horn standards. A decoupling sleeve is used to reduce feed line radiation
    • 3.2 TEST RESULT
      The peak gain is picked up as table list from Network analyzer in Chamber room, the completely gain plots also be shown as appendix.
        Peak Gain (dBi) / Beam Width( ° )
      Freq(MHz) 760 780 800
      H PLANE 3.53 / 360° 3.63 / 360° 4.13 / 360°
      E PLANE 3.46 / 49.7° 3.79 / 42° 3.12 / 37.2°
  4. APPENDIX

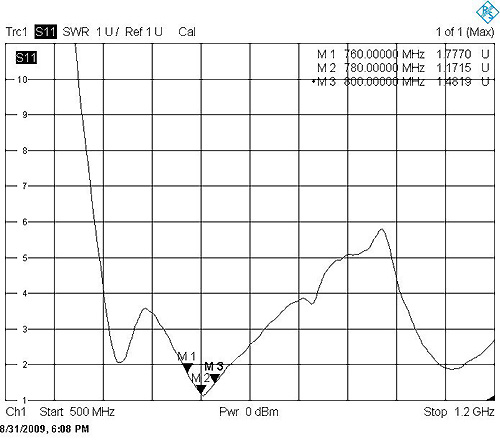

    • 4.1 RETURN LOSS & VSWR

      RETURN LOSS

      SWR

    • 4.2 RADIATION PATTERN

      H-PLANE-760MHz

      Center freq.(MHz) : 760 Plane : H Plane
      Max gain(dBi) : 3.53 Min gain(dBi) :1.66 Avg gain(dBi) : 2.81
      -3dB1(°) : 0.00 -3dB2(°) : 0.00 HPB(°) : 360.00
      Front (dB) : 3.531 Back (dB) : 3.096 F B Ratio (dB) : 0.435

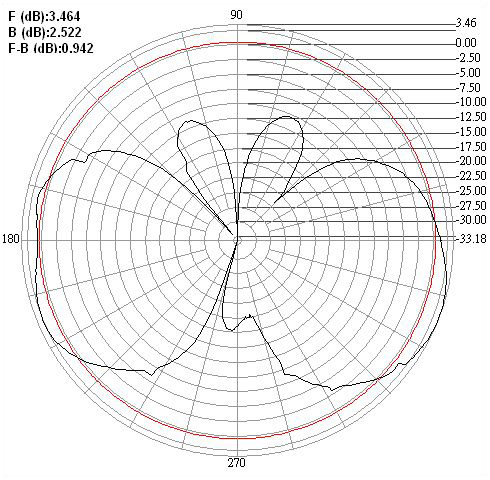

      E-PLANE-760MHz

      Center freq.(MHz) : 760 Plane : E Plane
      Max gain(dBi) : 3.46 Min gain(dBi) : -33.18 Avg gain(dBi) : -1.89
      -3dB1(°) : 365.70 -3dB2(°) : 316.00 HPB(°) : 49.70
      Front (dB) : 3.464 Back (dB) : 2.522 F B Ratio (dB) : 0.942

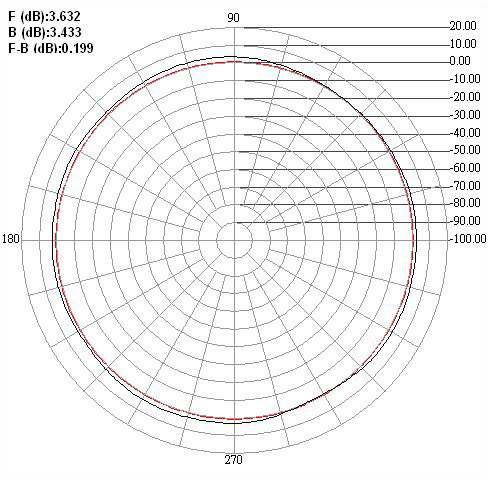

      H-PLANE-780MHz

      Center freq.(MHz) : 780 Plane : H Plane
      Max gain(dBi) : 3.63 Min gain(dBi) : -0.11 Avg gain(dBi) : 2.41
      -3dB1(°) : 0.00 -3dB2(°) : 0.00 HPB(°) : 360.00
      Front (dB) : 3.632 Back (dB) : 3.433 F B Ratio (dB) : 0.199

      E-PLANE-780MHz

      Center freq.(MHz) : 780 Plane : E Plane
      Max gain(dBi) : 3.79 Min gain(dBi) : -34.28 Avg gain(dBi) : -1.98
      -3dB1(°) : 354.30 -3dB2(°) : 312.30 HPB(°) : 42.00
      Front (dB) : 3.794 Back (dB) : 1.836 F B Ratio (dB) : 1.958

      H-PLANE-800MHz

      Center freq.(MHz) : 800 Plane : H Plane
      Max gain(dBi) : 4.13 Min gain(dBi) : -959.33 Avg gain(dBi) : 1.96
      -3dB1(°) : 0.00 -3dB2(°) : 0.00 HPB(°) : 360.00
      Front (dB) : 4.126 Back (dB) : 2.910 F B Ratio (dB) : 1.217

      E-PLANE-800MHz

      Center freq.(MHz) : 800 Plane : E Plane
      Max gain(dBi) : 3.12 Min gain(dBi) : -32.53 Avg gain(dBi) : -2.18
      -3dB1(°) : 348.60 -3dB2(°) : 311.40 HPB(°) : 37.20
      Front (dB) : 3.121 Back (dB) : 1.653 F B Ratio (dB) : 1.468
