KW8300 P2MP MIMO Series Outdoor Wireless Bridge
Additional files
KW8300Series_P2MP-MIMO_WiTDM_Spec_FWS_20220607_v15.pdfProduct Introduction
Long Distance, High Bandwidth

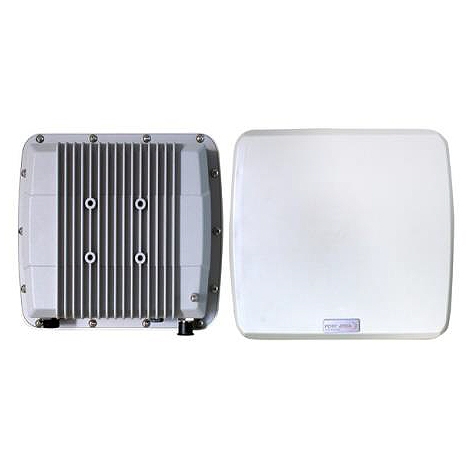

KW8300 Series P2MP MIMO WiTDM® Outdoor Bridge
250Mbps @15Km / 160Mbps @30Km / 70Mbps @70Km
4.8~6.2GHz
MIMO WiTDM Wireless Broadband product line are adopting Wireless TDMA concept to provide an affordable and reliable rural connectivity. All of products are high-performance outdoor-deployable wireless bridge that provides wireless connectivity between multiple network locations.With the high throughput and long-distance transmission, it is the appropriate backhaul solution for Carriers, Service Providers and Enterprises.
Key Features & Benefits
- Anti-Interference
- IP68 Qualified / Reliable Outdoor Enclosure
- Waterproof
- Vent design
- TDD QoS
- Good Balance on low Cost and High Performance
- Actual reachable testing range > 50 km
- High throughput
- Support point to point , point to multi point
- Network Topology MAP
- High security (AES 128 bit)
- Ease of Installation (Real time Link Test for Local and Remote RSSI)
- Transmit Power Control
- Bandwidth Control (5MHz, 10MHz, 15MHz, 30MHz, 52MHz)
- Wireless TDMA (TDD Mode)
- Wi-Fi Bridge 40km - Each data likes to transmit 80km poor performance,<1Mbps
- WiTDM Bridge 40km - Test Result 800Mbps@40Km
WiVIEW 2, Managed Tool
| HARDWARE | |
|---|---|
| Memory | 16MB Flash + 64MB SDRAM |
| LAN | 1 x 10/100/1000 BaseT RJ-45 with Auto-MDIX |
| Power Over Ethernet (PoE) | Yes (802.3at) |
| Default Button | Yes |
| Enclosure | Metal Case, IP 68 Verified |
| Lighting Protect | From Ethernet |
| FEATURE | |
| Operating Mode | Bridge (P2P / P2MP) |
| Link Test Tool | Yes (Real Time Local and Remote RSSI) |
| Radio Bandwidth | 5MHz, 10MHz, 15MHz, 30MHz, 52MHz |
| TDMA | Yes |
| TDM Coordination | Yes |
| QoS | TDD / 802.1P |
| Channel Selection | Yes |
| Auto Channel | Yes |
| DFS/TPC | Yes |
| Spanning Tree (STP) | Yes |
| VLAN | Yes (802.1Q) |
| GPS Coordinates | Yes |
| Space In Meters | Yes (Auto) |
| NTP Client | Yes |
| CLI | Yes (SSH) |
| Backup / Restore | Yes |
| System Log | Yes |
| Remote Log Server | Yes |
| SECURITY | |
| Encryption | AES 128bit |
| MANAGEMENT | |
| Web Base Management | Yes |
| SNMP | V2, V3 Private MIB, 802.11 MIB |
| Windows Tool | Yes, WiVIEW 2 |
| PHYSICAL | |
| Operating Temperature | -30 ~ 80C |
| Operating Humidity | 10 ~ 95% RH |
| Model | Antenna dBi | Output Power dBm | Sensitivity dBm | Dimension mm | Weight Kg |
|---|---|---|---|---|---|
| KW50-O8300 R1 | 2x N Jack | 25 | -95 | 259 x 250 x 75 | 1.8 |
| KW50-O8200-15 | 2x2 15dBi | 25 | -95 | 259 x 250 x 75 | 2.2 |
| KW50-O8200-I | 2x2 20dBi | 25 | -95 | 320 x 320 x 95 | 3.0 |
| KW50-O8300 R2 | 4x N Jack | 25 / 25 | -95 / -95 | 259 x 250 x 75 | 1.9 |
Customized Frequency
300MHz / 400MHz / 700MHz / 900MHz / 1.8~1.9GHz / 2.2~2.3GHz / 2.3~2.5GHz / 3.3~3,4GHz / 4.4~4.9GHz /
- KW50-O8200-I
- KW50-O8300 R1
KW50-O8300 R2 - KW50-O8200-15
- KW50-O8300 R1
